Maximum Flow in Barron and Matadero Creeks

Flow in cubic feet per second

Frequency: average interval over the longterm
Probability: probability of the flow occurring in a given year when computed over the longterm.

Note that these measures are used to compute the longterm risks, rather than the risks for a specific year and weather conditions.

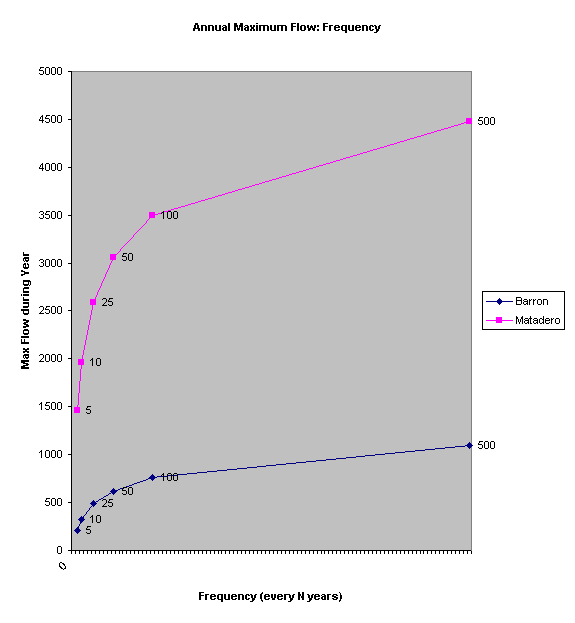

Chart Annual Maximum Flow: Frequency

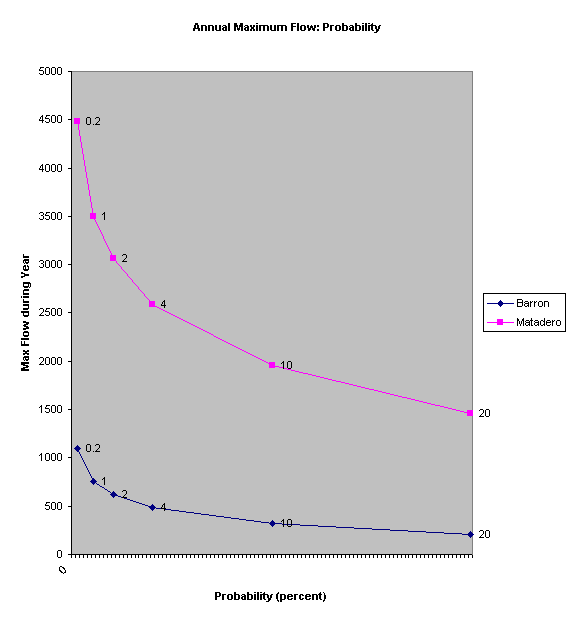

Chart Annual Maximum Flow: Probability

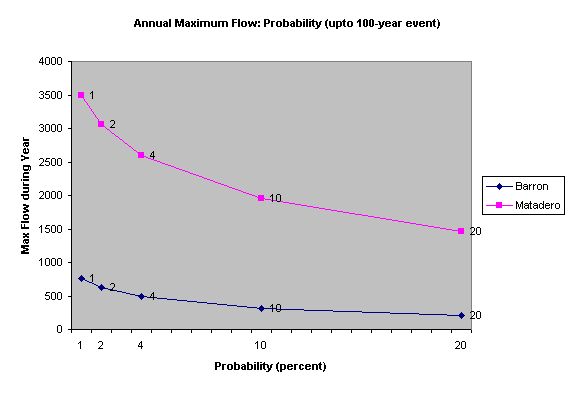

Chart Annual Maximum Flow: Probability (upto 100-year event)



Last Updated on 1/13/98

Version Info: $Revision: 1.5 $ $Date: 2002/06/05 04:58:05 $
